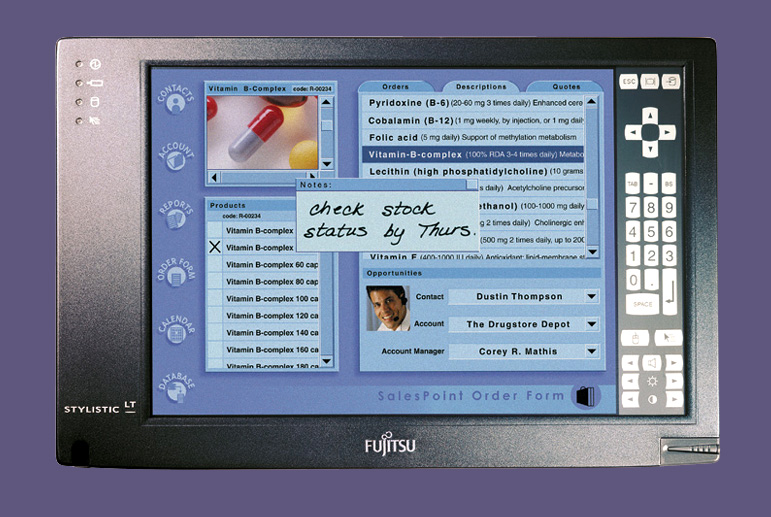

The lightest and most compact Windows 98 pen tablet ever, the Stylistic LT is also one of the fastest pen computers on the market. Weighing a mere 2.4 pounds and measuring only 1.1 inches thick, the Stylistic LT delivers notebook performance with a 233 MHz Pentium MMX processor, 64 MB SDRAM, 4.3 GB hard drive and an 8.4" color SVGA display.

Designed for Working Mobility, the Stylistic LT targets the demanding needs of mobile enterprise applications such as merchandising, clinical and home healthcare, and surveys and inspections. Providing instantaneous decision support at the tap of a pen, its built-in keypad offers easy data entry and Internet browser use. The user can instantly transform the pen tablet into a full-fledged office computer to write reports or log onto the Net by using the optional wireless keyboard and portfolio case or mini dock.

The Stylistic LT display options include choice of color transflective SVGA indoor/outdoor display, or a sharp, TFT color display offering up to 262,144 colors and a wide viewing angle. For high-speed communications, the Stylistic LT offers built-in 100BASE-TX Ethernet LAN controller or internal 56K V.90 modem options.

• Ergonomic Design
• Display Capabilities
• CPU, Memory and Storage
• Connectivity
• Battery and Power Management
• System Software
• Customization and Options
• Specifications

Panning

The Stylistic LT's SVGA display can be panned (scrolled) across a larger XGA image, simply by touching the pen to the edge of the display. This allows programs written for higher-resolution displays to run without difficulty on the Stylistic LT.

Zoomed Video

The Stylistic LT is one of the few pen tablets to offer Zoomed Video (ZV). By streaming video directly from a PC Card to the graphics controller, the audio controller and the frame buffer, ZV eliminates the need to send video and audio data through the CPU or system bus. This simple and effective method uses the well-defined PCMCIA mechanical standard to bring full-motion video (at 30 frames per second) into the portable environment.

CPU, Memory and Storage

Benefits

233 MHz Pentium MMX Processor

The Stylistic LT features a 233 MHz Intel Pentium MMX processor with a 32 KB internal (L1) cache and 512 KB Level 2 (L2) cache, delivering notebook performance in a pen tablet. This power enables the Stylistic LT to keep pace with demanding enterprise and multimedia applications.

High-speed Memory

The Stylistic LT features 64 MB of high-performance synchronous DRAM memory to meet the needs of Windows 98 and memory-hungry applications.

MCM Technology

Using just 30% of the board space required by conventional packaging, Fujitsu’s state-of-the-art Multichip Module (MCM) technology enables higher chip density in a smaller space and more efficient thermal design. This improves heat dissipation and performance while controlling weight in a compact form factor. The Stylistic LT's MCM includes the CPU, half of the core logic chipset, and the L2 cache.

Large Capacity Hard Disk Drive

The Stylistic LT uses an internal 2.5" Ultra ATA hard disk with 4.3 GB capacity. This massive storage capacity makes it possible for the Stylistic LT to easily handle the growing size of enterprise applications, such as remote database software, mapping, and multimedia presentations.

Shock-Mounted Hard Drive

The hard disk in the Stylistic LT is shock-mounted, using exclusive technology developed by Fujitsu. The shock mounts extend the shock and vibration resistance of the 2.5" hard disk up to six times that of a standard notebook’s hard drive. Since the hard disk is the most sensitive component in the entire system, this significantly increases the overall ruggedness and reliability of the Stylistic LT.

Connectivity

Benefits

Connectivity

The Stylistic LT provides connectivity compatible with the latest industry standards. Connectivity includes PC Card (CardBus), IrDA, Sound Blaster Pro-compatible audio system (incorporating an internal speaker, microphone and headphone jacks), USB port, docking contacts and a connector to the unit’s optional mini dock.

Wireless Keyboard

With the optional wireless keyboard and portfolio case, users enjoy immediate connectivity for drafting quick meeting notes, just like on a notebook. Used with the mini dock, it instantly transforms the Stylistic LT pen tablet into an office powerhouse. The keyboard runs on standard AAA batteries.

Mini Dock

The Stylistic LT's mini dock has an adjustable viewing angle and allows a wide variety of desktop peripherals to be connected to the unit in seconds. It enables single-motion, drop-in connectivity for an RS-232 serial, parallel, PS/2 keyboard, PS/2 mouse, external monitor and floppy drive ports; an RJ-45 network jack and DC-in.

Simple Expansion

The Stylistic LT features one Type-III or two stacked Type-II PC Card 3.0 (CardBus) slots for the easy addition of Zoomed Video, GPS receiver, network interface, modem or other PC Cards.

Optional 56 Kbps V.90 Modem for U.S. and Canada

Integrated into the Stylistic LT, this optional 56K V.90 modem provides greater durability than a PC Card modem. An extra PC Card slot is freed up for other peripherals, enhancing the computer’s flexibility.

High-Speed LAN Option

For mobile users who need to connect to their network when they return to the office, the Stylistic LT offers the ideal solution: an optional built-in 100BASE-TX Ethernet LAN controller. Used with an RJ-45 jack in the mini dock, it enables a high speed hook-up to the company LAN to access and transfer updated information.

IrDA Port

The Stylistic LT's integrated FIR (IrDA 1.1) port supports point-and-shoot infrared printing and connectivity with other IrDA devices at an impressive 4 Mbps speed.

Battery and Power Management

Benefits

Advanced Power and Heat Management

The Stylistic LT employs a multi-level approach to achieve power and heat management that is unsurpassed in the industry. The key building blocks include the excellent processor power management capability provided by Intel's 430TX chipset and the complete implementation of APM 1.2 in the Stylistic LT's BIOS.

ACPI (Advanced Configuration and Power Interface) 1.0 is also supported. ACPI, which supercedes APM, allows the operating system (and hence the application) to gain complete control over power management, thus reducing dependency on hardware-specific BIOS implementations.

Lithium Ion Battery

The Stylistic LT is available with either a 1300mAh or 2600mAh rechargeable lithium ion battery.

System Software

Benefits

32-Bit and 16-Bit Pen Support

FPSI was the first pen tablet vendor to provide 32-bit Windows pen support, and is the only pen tablet vendor to provide both 32-bit and 16-bit pen support. Using the Stylistic LT with Communication Intelligence Corporation’s (CIC) PenX 1.66 32-bit pen extensions, companies have a single enterprise standard for 32-bit pen support. Microsoft’s Pen Services 2.0 and CIC’s HRS ship with the Stylistic LT for 16-bit pen support.

Having both 32-bit and 16-bit pen support available allows companies to retain their 16-bit applications investment and migrate easily to 32-bit. Other benefits of FPSI’s full pen support include the ability to create new pen-based enterprise applications and full enabling of the pen, including handwriting recognition, signature capture, gestures and drawing.

Operating System

The Stylistic LT ships with Windows 98, Second Edition.

Handwriting Recognizer

The Stylistic LT includes both 32-bit and 16-bit handwriting recognizers. Either recognizer can easily be replaced with any of a variety of other handwriting recognizers—including cursive (script) recognizers— available from other vendors. This provides the VAR or systems integrator with a high degree of flexibility in configuring custom applications.

Customization and Options

Benefits

Product Customization

FPSI offers the following applications and utilities as part of its standard toolbox for VAR, systems integrator or IT customization to broaden configurability of the Stylistic LT:

• Windows DLL and library for setting BIOS options (including power management), which allow custom applications to directly change the system configuration
• FPSI Pen Control Panel Application, a Windows utility that allows switching between 16-bit and 32-bit pen support "on the fly," or enabling just mouse emulation without handwriting recognition
• MFGLITE, an MS-DOS utility that allows a VAR or systems integrator to automate the process of configuring large numbers of systems during the preparation for large rollouts.

Wide Range of Accessories and Peripherals

The Stylistic LT offers a broad selection of options and accessories. These add-ons significantly increase the flexibility of the Stylistic LT, allowing it to meet a wider range of application requirements.

Options and accessories include: auto adapter for power from the vehicle cigarette lighter, external battery charger, external floppy disk drive, bar code wand with integrated stylus holder, nylon slip case, portfolio case, carrying case, harsh environment case (HEC), system holster, HEC holster, mini dock, charge-only dock, wireless keyboard, folding desk stand, screen protector, spare 1300mAh and 2600mAh lithium ion battery packs , spare pens and AC adapter.

Warranties

As with all Fujitsu pen tablets, the Stylistic LT, comes with a 3-year limited warranty. All units are offered with an optional display damage service plan that provides up to two screen replacements per year resulting from accidental damage.
